So, if you've taken a look at FnordMetrics then you know why it's worth trying out. It's easy to get setup, has a great API for defining your metrics collection, and is a powerful tool in your platform-analytics arsenal.
If you've never heard of FnordMetrics before (since it's relatively new at this point) then, let me explain a little bit. From the FnordMetric site, it says:
FnordMetric is a highly configurable (and pretty fast) realtime app/event tracking thing based on ruby eventmachine and redis. You define your own plotting and counting functions as ruby blocks!
This pretty much sums it up. It's a beautiful API for representing data in a very compelling and useful way. If you want to know more about the project, head on over to their GitHub page. Also, be sure to check out the original screencast to see it in action!
Okay, let's get down to business. I'm going to walk you through getting started with FnordMetric in your C# project. Why C# you may ask? Well, mainly because that is the environment which I am currently spending my time in (at work) and because I believe we can all benefit from great projects. Not just cool startups who don't use .NET.
To follow along, you're going to need the following:
If you don't have a Linux server, then a VM or a free micro-instance from Amazon will do just fine. For me, I'm justing using the free, default 64-bit AMI from Amazon's official AMI list.
If you're entirely opposed to using Linux (and prefer Windows) then by all means use it. However, you are on your own other than the brief mention that you can find a great Windows Ruby installer over here.
Once you get the Linux server setup then you'll need to install Ruby. I'd recommend (for ease) that you use RVM. To get started, mosey on over to their (entirely professional) site and follow the instructions.
Once that is done, we need to install FnordMetric. This is my favorite part just because it is so easy. Open up a terminal and run:
That's it! Painless I know. :-)
That's all it takes to get a sample up and running. If you want proof, just run the following in a terminal:

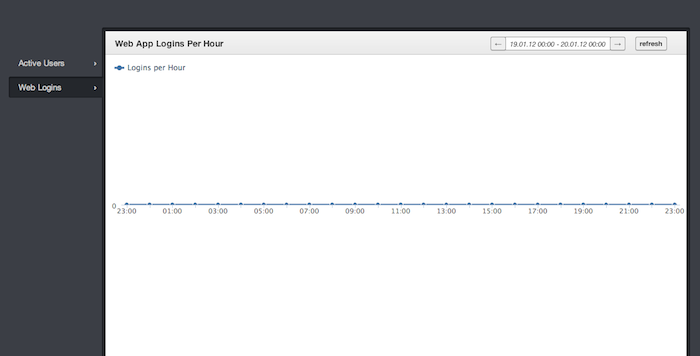

If everything is setup properly then you should be able to browse to http://localhost:4242/ and see a dashboard similar to the following:
Yay, now that you have fnord running, you just need to pump in some data. But fist, we need to stop and understand what all of this means. Let's take a look at the first actual line of code:
This simply let's us define a namespace within the Fnord application. What exactly is a namespace? Well, in the context of my work, it could be our web application or our real time services. Think of it as the whole dashboard. Note that it is possible to create multiple namespaces and host them all in one Fnord instance.
The next piece of important code is the gauge:
This specifies the bucket, per say. This is a bucket (or gauge) where you will store events. In this case I have a bucket (:logins_per_hour) that is aggregated on a per-hourly basis and it titled 'Logins per Hour'. This means that when I generate a graph, this data has a static granularity of a day. The title is only used when looking at the keys in your graph.
Moving on, the event:
This registers the event that Fnord will listen to and what to do when that event is received. In this case, we'd like to increment the gauge :logins_per_hour when we receive a :login event.
An event looks like this (in JSON):
This is sent to Fnord in a variety of ways (we'll look at one way in a minute).
Lastly, there is the widget. The widget determines what we're actually going to show in the dashboard.
In this case, we'd like to use the bucket (gauge) we've created as input to a graph. We're saying that we'd like to create a timeline which includes the current time and updates every two seconds (poll server for more data).We've also given the widget a nice title to display.

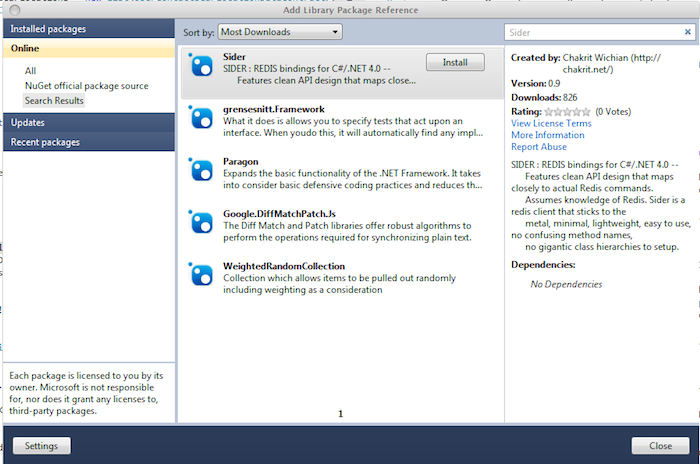

Now that we understand how things work on the Fnord side of things, it's time to crack open that C# project and get to work. The first thing that we need to do is add a library reference (via NuGet) to Sider.
Sider is a Redis library for C# that stays as close to the implementation as possible. It doesn't deal with mapping complex data types to the underlying storage engine. It's simple enough to be perfect for this demo. Remember earlier when I said that events could come to Fnord in a variety of ways. Well, the way we're going to send messages is to push messages directly to the Redis queue. Fnord will notice the new message and process the event.
So, since the example I have given deals with tracking logins, you would normally add the code below somewhere in your applications login method. Of course you can follow along however you like (login or no login).
At this point we are simply pushing a message directly to Redis. FnordMetric will notice the event and update the results in the dashboard. Note that I have set a timeout for this event of 60 seconds. This means that if FnordMetric is not running, it could miss the event (Redis will expire it). However, this keeps us from quickly building up a lot of stale data in our Redis installation.
You might also notice that there are some conventions with how we are naming the Redis keys. This is discussed in the next section if you are interested.
Okay, up until now, things have fit together pretty well without any intervention. But, what if my Redis install runs on a non-standard port? Or, perhaps I want my metrics dashboard to run over port 80 so that I can set up a sub-domain like stats.mysite.com. Maybe you're wondering how FnordMetric knows what items in Redis to read. Let's take a closer look.
The first piece of the puzzle is the configuration section which, if left out, is populated with some smart defaults. Let's define a custom configuration as
Take a minute to examine the configuration. Everything should be pretty
self-explanatory with the possible exception of the
is used to determine the keys you use when inserting data into redis. For
example, with the newly defined prefix, our redis ID might look like
The one other item that might be a little confusing is the
configuration option. This specifies on what port the API will run. The API
is yet another way to push data to FnordMetric but, I'm not going to cover
that here. You can learn more about that on their GitHub page.
Well, that's about it. There's not a lot of demystifying to do here. It's a pretty straight forward project with a gorgeous API. Obviously there is a lot more to this project than I have shown here. However, now that you have a working setup to play with, I recommend heading over to the GitHub page to learn more interesting tricks! If making that extra mouse click is just too much for you however, I've included a couple of extras below.
